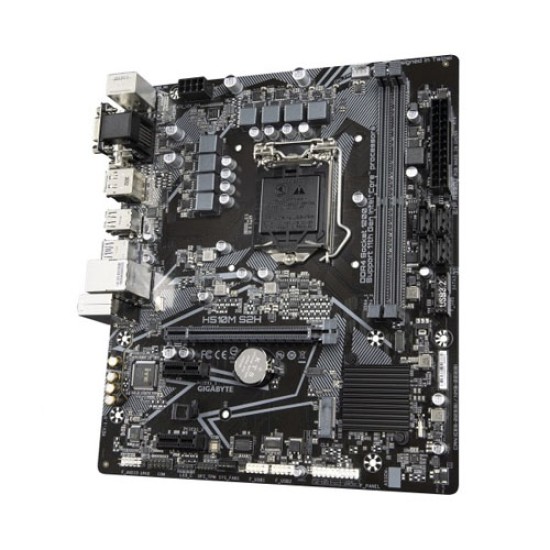

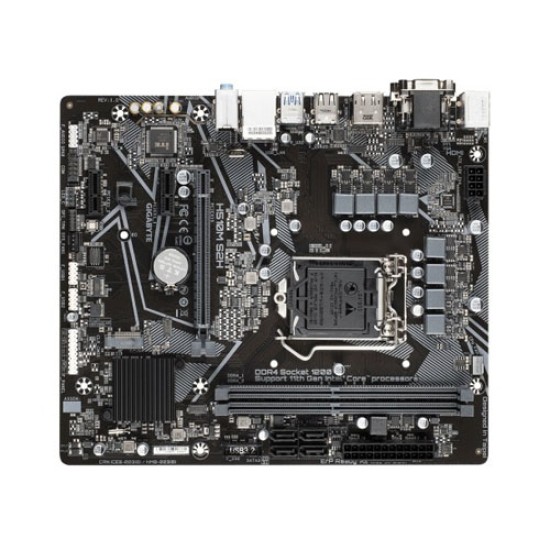

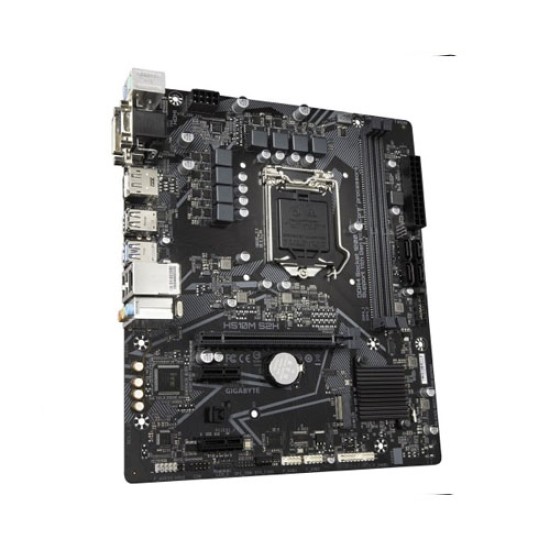

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: H510M S2H
MPN: star

Based on 0 reviews. - Write a review

10,000৳

Ex Tax: 10,000৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

- Supports 11th and 10th Gen Intel Core Processors
- Dual-Channel DDR4, 2 DIMMs
- Ultra-Fast M.2 with PCIe Gen3 X4
- 4 Display Interfaces Support

Memory Specifications
Type	Dual channel memory architecture
Slots	2 x DDR4 DIMM
Supported Memory	11th Generation Intel Core i9/i7/i5 processors: Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i9/i7 processors: Support for DDR4 2933/2666/2400/2133 MHz memory modules 10th Generation Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/2400/2133 MHz memory modules 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Max. Memory	64 GB (32 GB single DIMM capacity)
Basic Information
Supported CPU	11th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors 10th Generation Intel Core i9 processors / Intel Core i7 processors / Intel Core i5 processors / Intel Core i3 processors/ Intel Pentium processors / Intel Celeron processors * Limited to processors with 4 MB Intel Smart Cache, Intel Celeron G5xx5 family.
Chipset	Intel H510 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 21.0cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Expansion Slots
PCI	1 x PCI Express x16 slot, running at x16 (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) * Supported by 11th Generation processors only. 2 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 3.0 standard.)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz * Support for HDMI 1.4 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 * When the D-Sub port and DisplayPort are connected at the same time, images will output from the DisplayPort only. Support for up to 2 displays at the same time
Connector & Ports
HDMI	1 x HDMI ports, supporting a maximum resolution of 4096x2160@30 Hz
USB (s)	Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB header)
LAN Port (s)	Realtek GbE LAN chip (1 Gbit/100 Mbit)
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) * The PCIEX1_1 slot shares bandwidth with the M.2 connector. When the PCIEX1_1 slot is populated, the M.2 connector supports up to PCIe 3.0 x2 SSD only. 4 x SATA 6Gb/s connectors
Audio	3 x audio jacks
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub port
DVI-D (s)	1 x DVI-D port
Others Information
Special Features	Support for APP Center @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	3 years

Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard

Gigabyte H510M S2H Motherboard supports 11th and 10th Gen Intel Core Series Processors. It features Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs and Ultra-Fast M.2 with PCIe Gen3 X4 & SATA Interface. It comes with GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management. It comes with 4 Display Interfaces Support. It comes with high-end audio capacitors. These high-quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers. It features an audio noise guard that essentially separates the board’s sensitive analogue audio components from potential noise pollution at the PCB level. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Smart Fan 6 contains several unique cooling features that ensure the gaming PC maintain their performance while staying cool and quiet. Each fan headers support PWM and DC fan and Water cooling Pump, and up to 24W (12V x 2A) with Over-Current Protection. The fan can stop completely below users’ specified temperature point. Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version. It is very Simple and Easy Use.

What is the Gigabyte H510M S2H Intel 10th and11th Gen Micro ATX Motherboard price in bd 2026?

The Gigabyte H510M S2H Component price in BD is 10,000৳. In today's market on 20-02-2026. The Gigabyte H510M S2H Component is In Stock now in our store (Call us to know about details of this product). 16 customer buy this product From 3266 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte H510M S2H online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
