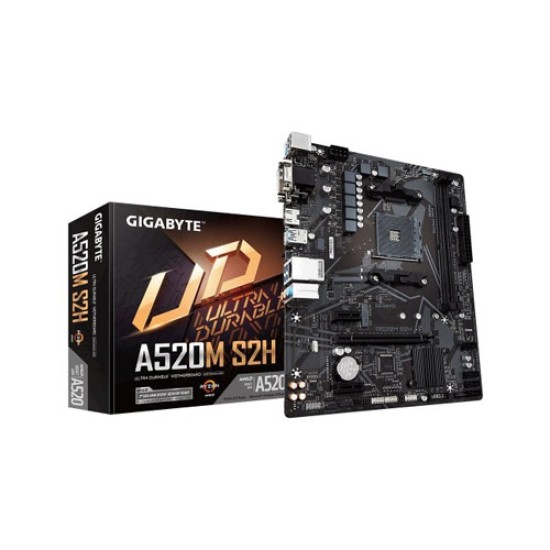

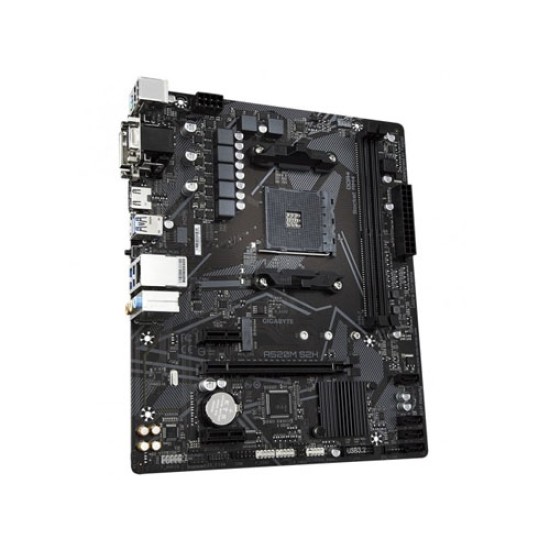

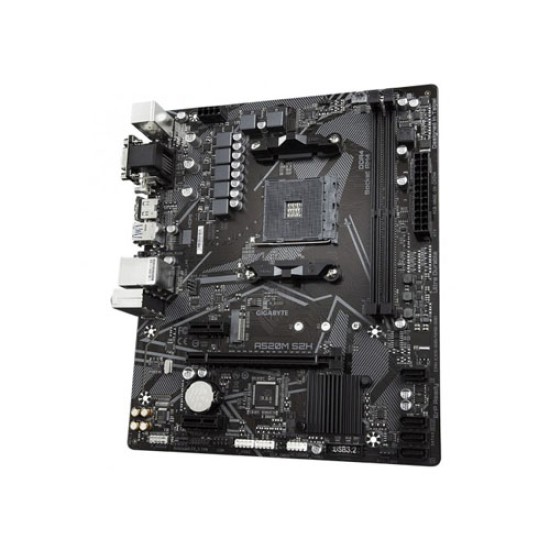

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

Status: In Stock
Brand: Gigabyte
Model: Gigabyte A520M S2H Ultra Durable
SKU: 46770
MPN: star

Based on 0 reviews. - Write a review

9,000৳

Ex Tax: 9,000৳

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

প্রোডাক্ট অর্ডারের পূর্বে সাপোর্ট থেকে স্টক এবং ডেলিভারি সম্পর্কে জেনে অর্ডার করার জন্যে অনুরোধ করা যাচ্ছে।

- AMD Ryzen 5000 4000G Series and AMD Ryzen 3rd Generation Processors
- Smart Fan 5 Features
- Ultra Fast NVMe PCIe 3.0 x4 M.2
- 4+3 Phases Pure Digital VRM Solution

Memory Specifications
Type	Dual channel memory architecture
Slots	2 x DDR4 DIMM
Supported Memory	3rd Gen AMD Ryzen Processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Max. Memory	64 GB
Basic Information
Supported CPU	AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
Chipset	AMD A520
BIOS	1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 20.5cm
Expansion Slots
PCI	CPU: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 Chipset: 2 x PCI Express x1 slots, supporting PCIe 3.0
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Graphics
Graphics	Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Max Shared Memory	16 GB
Connector & Ports
HDMI	1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
USB (s)	CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Supported Storage	CPU: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support) Chipset: 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10
Audio	Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x speaker header 1 x chassis intrusion header 1 x Clear CMOS jumper
D-Sub (s)	1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
DVI-D (s)	1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Others Information
Special Features	Support for APP Center @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Support for Q-Flash Support for Xpress Install
Warranty Information
Manufacturing Warranty	03 years

FEATURES:

Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ And 3rd Gen Ryzen™ With Radeon™ Graphics Processors
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
4+3 Phases Pure Digital VRM Solution With Low RDS(On) MOSFETs
Ultra-Fast NVMe PCIe 3.0 X4 M.2 Connector
GIGABYTE Exclusive 8118 Gaming LAN With Bandwidth Management

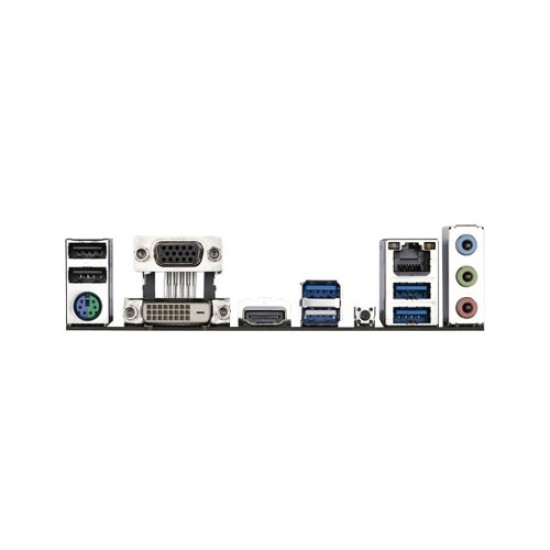

HDMI, DVI-D, D-Sub Ports For Multiple Display
RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers With FAN STOP
Q-Flash Plus Update BIOS Without Installing The CPU, Memory And Graphics Card
Anti-Sulfur Resistors Design

Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard

GIGABYTE UD Series Motherboards Use A 4+3 Phases Pure Digital PWM + Low RDS(On) MOSFETs Design To Support The 3rd Gen AMD Ryzen™ CPUs By Offering Incredible Precision In Delivering Power To The Motherboard's Most Power-Hungry And Energy-Sensitive Components As Well As Delivering Enhanced System Performance And Ultimate Hardware Scalability

NVMe PCIe Gen3 X4 M.2 Connector

GIGABYTE Motherboards Are Focused On Delivering M.2 Technology To Enthusiasts Who Want To Maximize Their System’s Potential.

Exclusive Realtek 8118 Gaming LAN

High-Speed Gigabit LAN With Automatic Bandwidth Allocation

Realtek 8118 LAN Is A High Performance And Friendly Network Chip For Gaming Players With Automatic Bandwidth Allocation To Ensure The Highest Network Priority Of The Game Or Application. It Can Provide Users The Most Comprehensive Features And The Fastest And Smoothest Internet Experience.

The Industry's Leading LAN Static-Electricity & Surge Protection

GIGABYTE Motherboards Use ICs With Up To 3 Times The ESD Resistance Levels Compared To Traditional ICs. This Helps To Better Protect The Motherboard And Its Components Against Potential Damage Caused By Static Electricity. GIGABYTE Motherboards Also Feature Special Anti-Surge ICs That Protect Your Motherboard, And Your PC From Any Surge In Power Delivery That May Occur, Helping To Ensure That Your PC Is Equipped To Deal With Any Potentially Irregular And Inconsistent Power Delivery.

What is the Gigabyte A520M S2H Ultra Durable AMD AM4 ATX Motherboard price in bd 2026?

The Gigabyte Gigabyte A520M S2H Ultra Durable Component price in BD is 9,000৳. In today's market on 20-02-2026. The Gigabyte Gigabyte A520M S2H Ultra Durable Component is In Stock now in our store (Call us to know about details of this product). 20 customer buy this product From 4111 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order Gigabyte Gigabyte A520M S2H Ultra Durable online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.

Tags: Gigabyte A520M S2H Motherboard price in bd , Gigabyte A520M S2H Motherboard specification , Gigabyte A520M S2H Motherboard review , Gigabyte A520M S2H Motherboard overview , Gigabyte A520M S2H Motherboard , Motherboard price , Motherboard
